Solar Kit 5kWh + 3kW
A 5 kWh solar storage kit paired with a 3 kW inverter, 4 × 620 W PV modules and installation accessories.
Energy5 kWh
Power3 kW
KNOW YOUR SYSTEM
Product overview
The kit brings battery storage, power conversion and solar generation into one component schedule, helping installers plan the system around the site's loads and available mounting area.
The supplied configuration includes ground mounting, PV cable and MC4 connectors. Review the component quantities below with your installer before confirming the final installation.

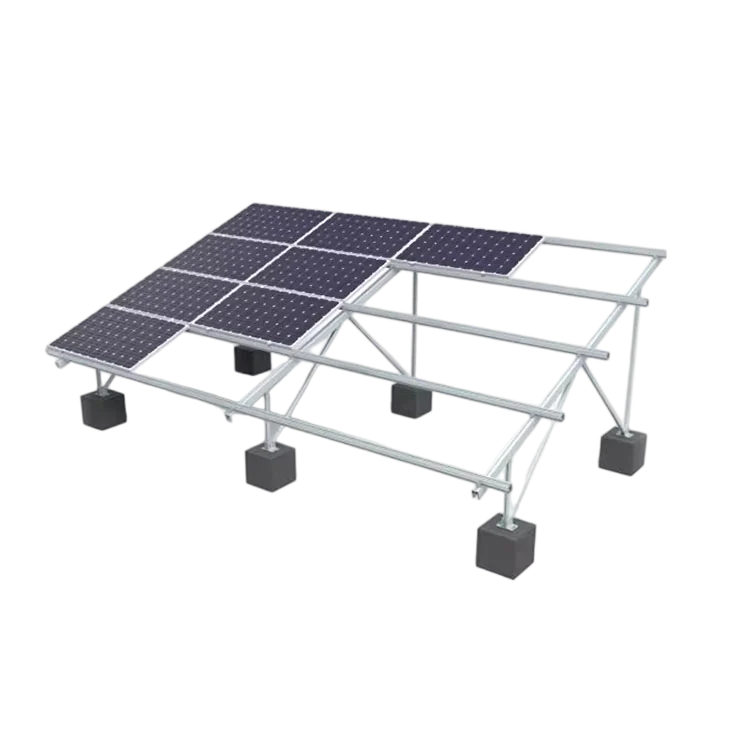

- Mounting arrangement: Ground mounting
- PV modules: 4
Technical specifications
Model-specific data from the supplied product records and specification sheets. Values marked for confirmation are not included in the headline ratings.
Product & applicationBattery & energyPV inputMechanical & environmentBattery componentInverter componentPV module component
| Parameter | Specification |
|---|---|
| Inverter power (kW) | 3 |
| System type | Hybrid |
| Inverter quantity (pcs) | 1 |

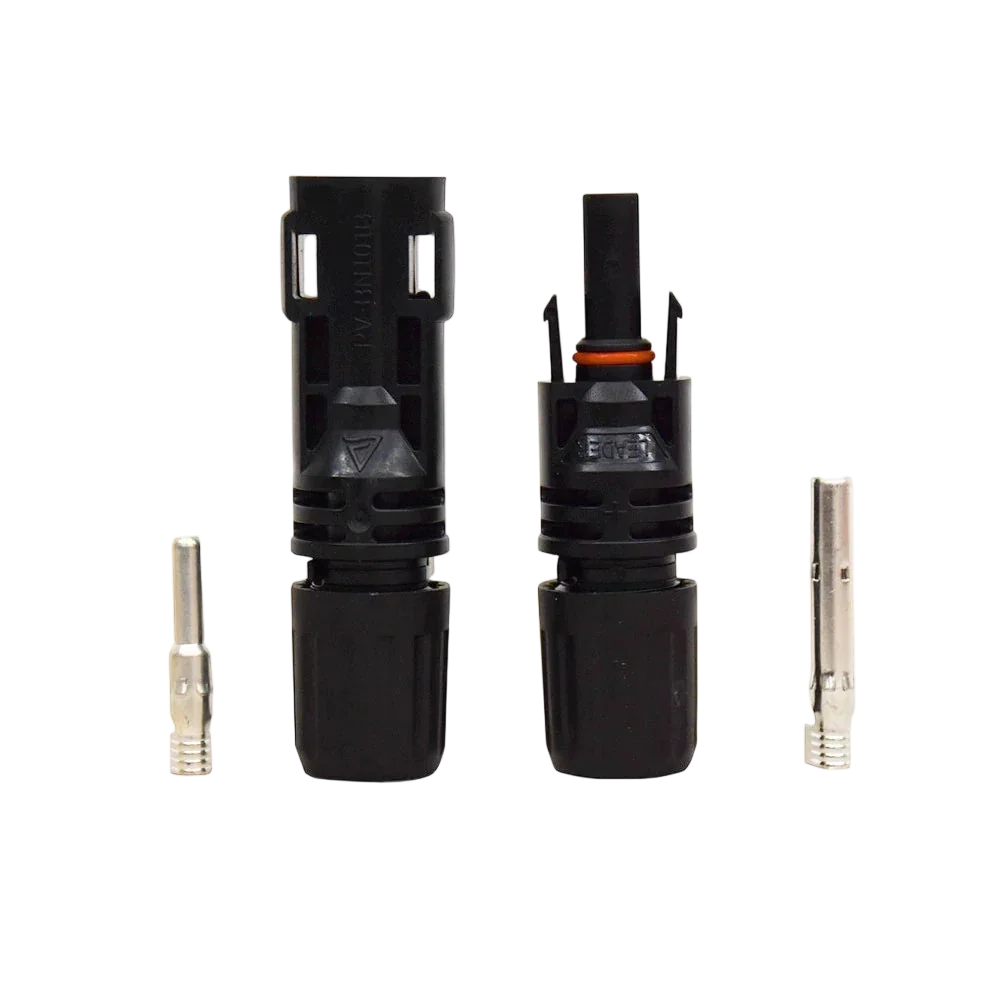

| MC4 connectors | Included |
| DC circuit breaker (pcs) | Not specified |
| Inverter rated battery voltage (V) | 24 |
| Parameter | Specification |
|---|---|
| Battery energy (kWh) | 5 |
| Battery quantity (pcs) | 1 |
| Parameter | Specification |
|---|---|
| PV module (W) | 620 |
| PV modules | 4 |

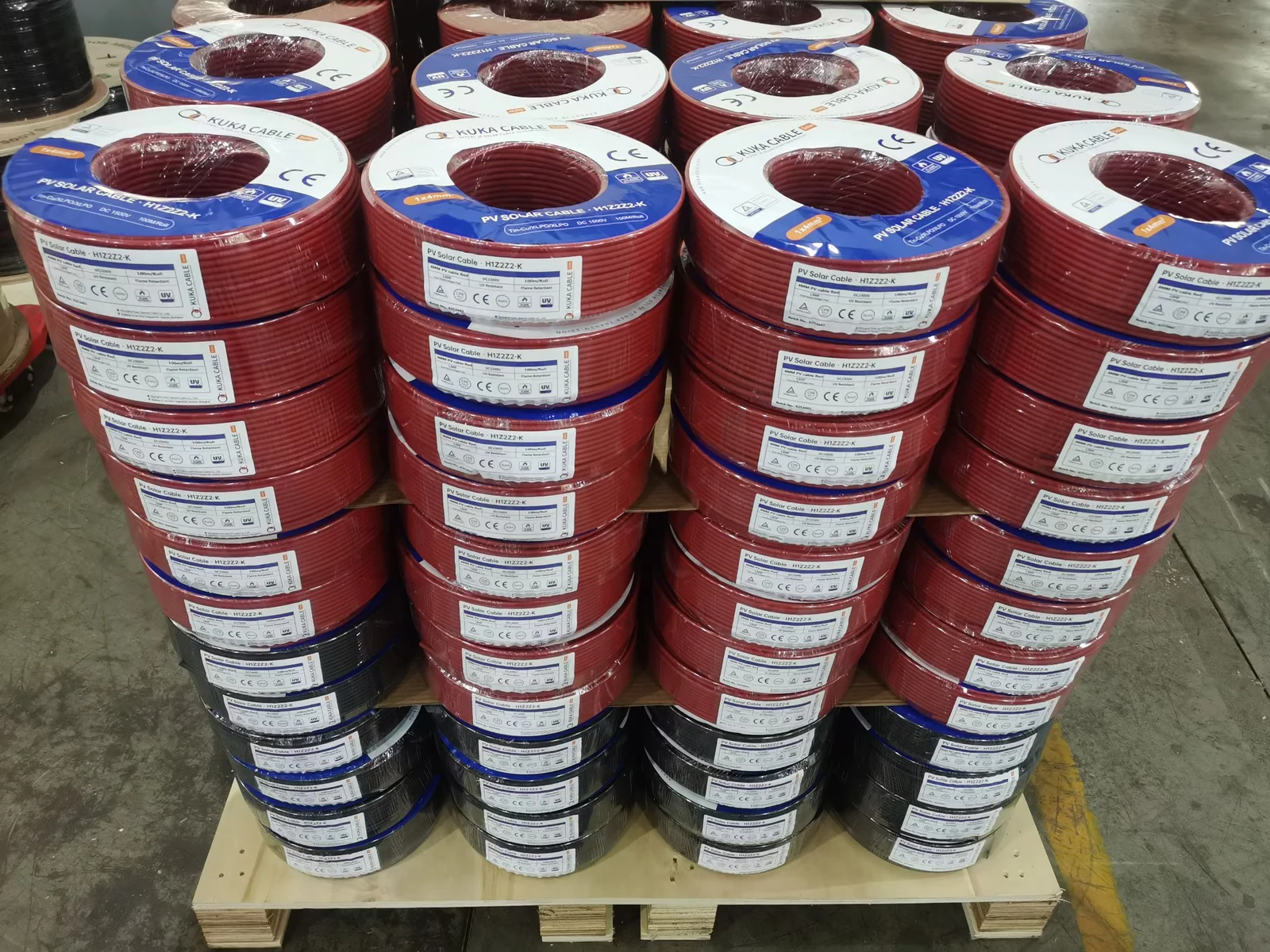

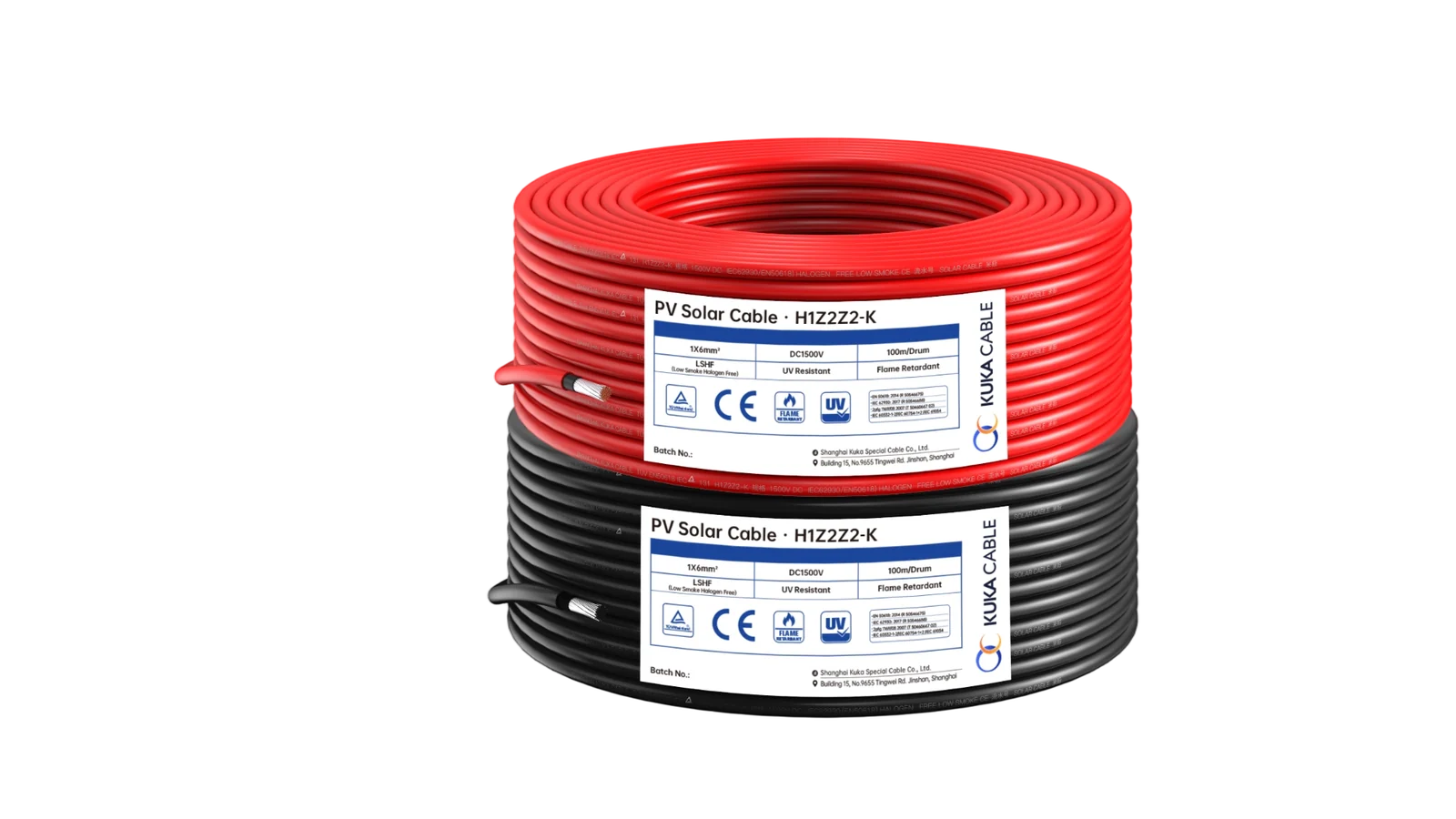

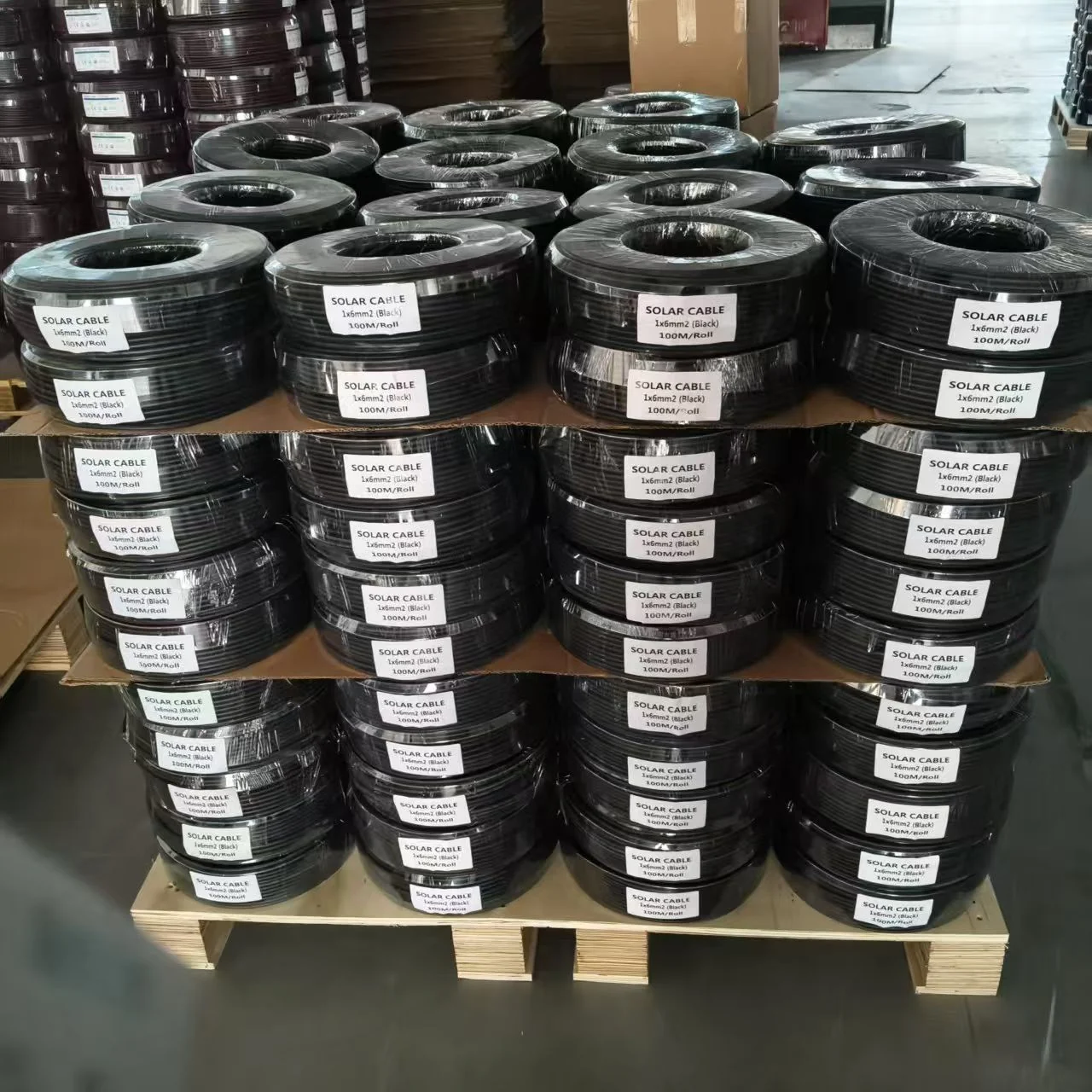

| PV cable | Included; length to suit configuration |

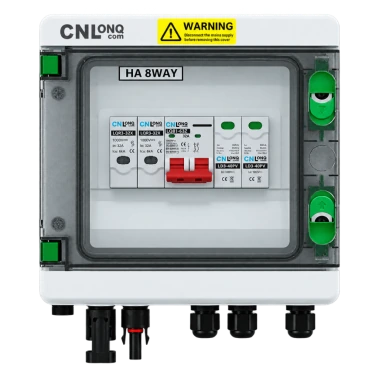

| PV combiner box (pcs) | 1 |
| Parameter | Specification |
|---|---|

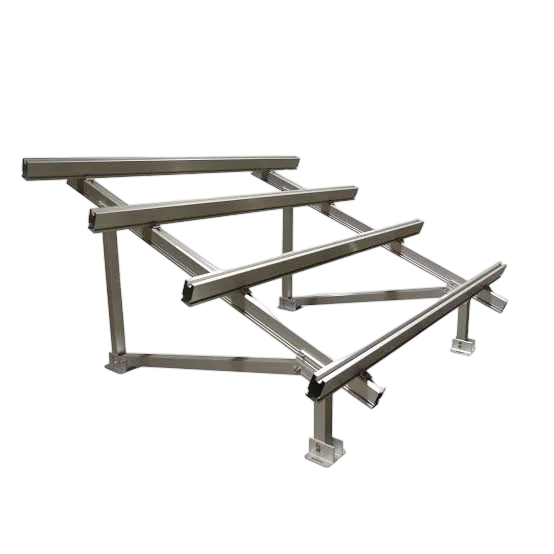

| Mounting arrangement | Ground mounting |
| Parameter | Specification |
|---|---|
| Usable energy | 5.12 kWh |
| Nominal voltage | 25.6 V (8S LiFePO4) |
| Nominal capacity | 200 Ah |
| Operating voltage range | 22.4 – 29.2 V |
| Cell technology | LiFePO4 (LFP) |
| Max charge current (battery-side cap) | 100 A · 2.56 kW |
| Max discharge current | 200 A (1C continuous) |
| Charge temperature | 0 – 45 °C |
| Discharge temperature | -20 – 60 °C |
| Humidity | ≤ 95 % RH (no condensation) |
| IP rating | IP20 (indoor) |
| Dimensions (W×H×D) | Refer to factory datasheet |
| Cycle life | 6,000 cycles @ 80 % DoD |
| Scalability | Multiple units in parallel |
| Communication | CAN / RS485 |
| Display | SOC LED indicator + LCD display |
| Compatible inverters | 24 V system inverters (Haishang, Victron, etc.) |
| Compliance | UN38.3 / IEC 62619 / IEC 61000Standards listed in the component sheet; model-specific certificates are not established by this table. |
| Application | Off-grid / Backup / On-grid (with hybrid inverter) |
| Warranty | 5 years (standard) |

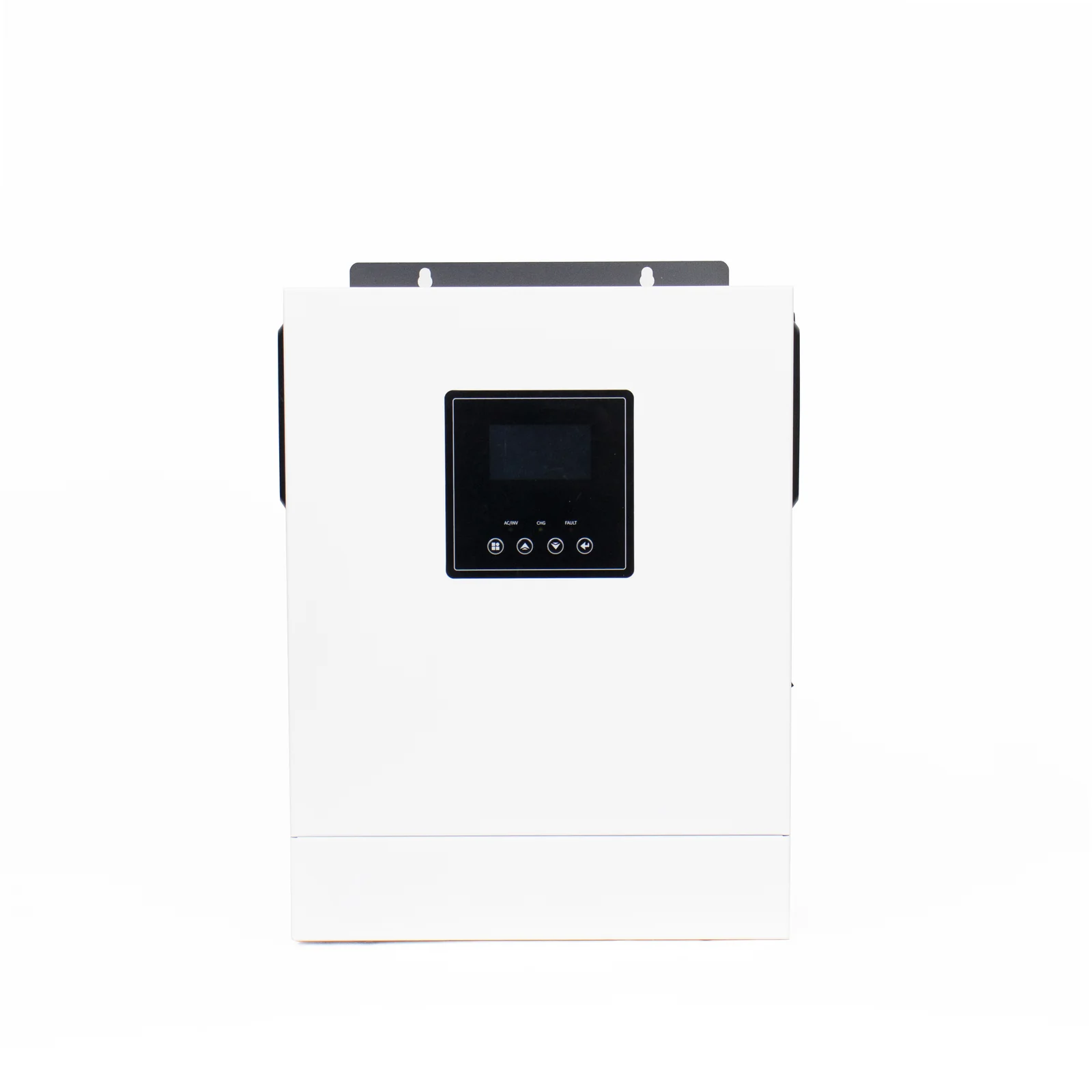

| Parameter | Specification |
|---|---|
| AC rated output power | 3 kW |
| Nominal AC voltage | 240 VAC ± 5 % (single phase) |
| Nominal AC frequency | 50 / 60 Hz |
| Nominal AC output current | 13.63 A |
| Output waveform | Pure sine wave |
| Phase | 1 |
| Battery rated voltage | 24 V (25.6 V LFP compatible) |
| Battery type | Lead-acid / Lithium |
| Battery charge / discharge current | 100 A |
| Charging method | Two-way / three-way / automatic setting |
| Maximum PV input power | 3 kW |
| MPPT voltage range | 30 – 450 V |
| Max PV open-circuit voltage | 500 V |
| Max PV DC input current | 13 A |
| MPPT trackers | 1 |
| Cooling | Intelligent air cooling |
| Operating temperature | -10 – 50 °C |
| IP rating | IP21 (indoor) |
| Dimensions (W×H×D) | 402 × 310 × 105 mm |
| Net / gross weight | 6.5 kg / 7.45 kg |
| Packaging size | 467 × 390 × 188 mm |
| Working mode | Hybrid |
| OutputTopology | L+N+PE |

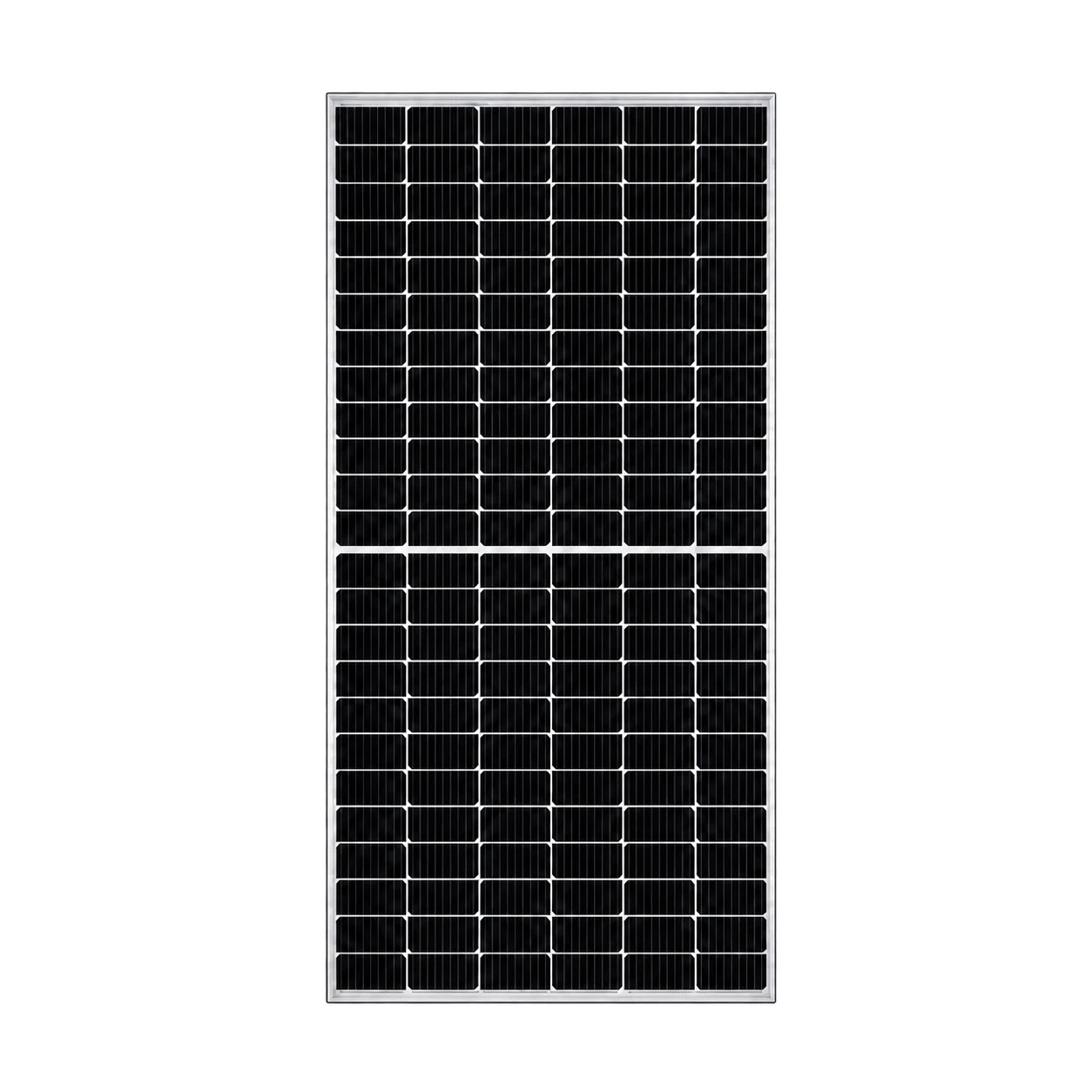

| Parameter | Specification |
|---|---|
| Maximum power (Pmax) | 620 W |
| Module efficiency | 22.95 % |
| Voltage at Pmax (Vmpp) | 41.33 V |
| Current at Pmax (Impp) | 15.00 A |
| Open-circuit voltage (Voc) | 49.32 V |
| Short-circuit current (Isc) | 15.92 A |
| Power tolerance | 0 / +5 W |
| NMOT maximum power (Pmax) | 466.0 W |
| NMOT Vmpp / Voc | 38.83 V / 46.33 V |
| NMOT Impp / Isc | 12.00 A / 12.74 A |
| Nominal operating temperature | 45 ± 2 °C |
| +5 % rear gain / Pmax | 23.32 % / 651 W |
| +15 % rear gain / Pmax | 26.40 % / 713 W |
| +25 % rear gain / Pmax | 28.69 % / 775 W |
| Cell technology | N-type Mono (LECO / SMBB) · 132 cells (6 × 22) |
| Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
| Weight | 33.5 kg |
| Front / rear static load | 5400 Pa / 2400 Pa |
| Junction box | IP68 · 3 bypass diodes · MC4 compatible |
| Max system voltage | 1500 V DC (IEC) |
| Max series fuse rating | 30 A |
| Operating temperature range | -40 °C to +85 °C |
| Temp. coeff. Pmax / Voc / Isc | -0.29 % / -0.25 % / +0.045 % per °C |
| Product warranty | 15 years |
| Linear power warranty | 30 years · 87.4 % at year-30 |
| Certifications | ISO 9001 / 14001 / 45001, IEC 61215, 61730, 61701, 62716, CEStandards listed in the component sheet; model-specific certificates are not established by this table. |
Source documents
- Combo_Set_Overview.md · product and packing record
- Hybrid_5kWh_3kW_System_SpecSheet.pdf · Page 2
Around your solar kit

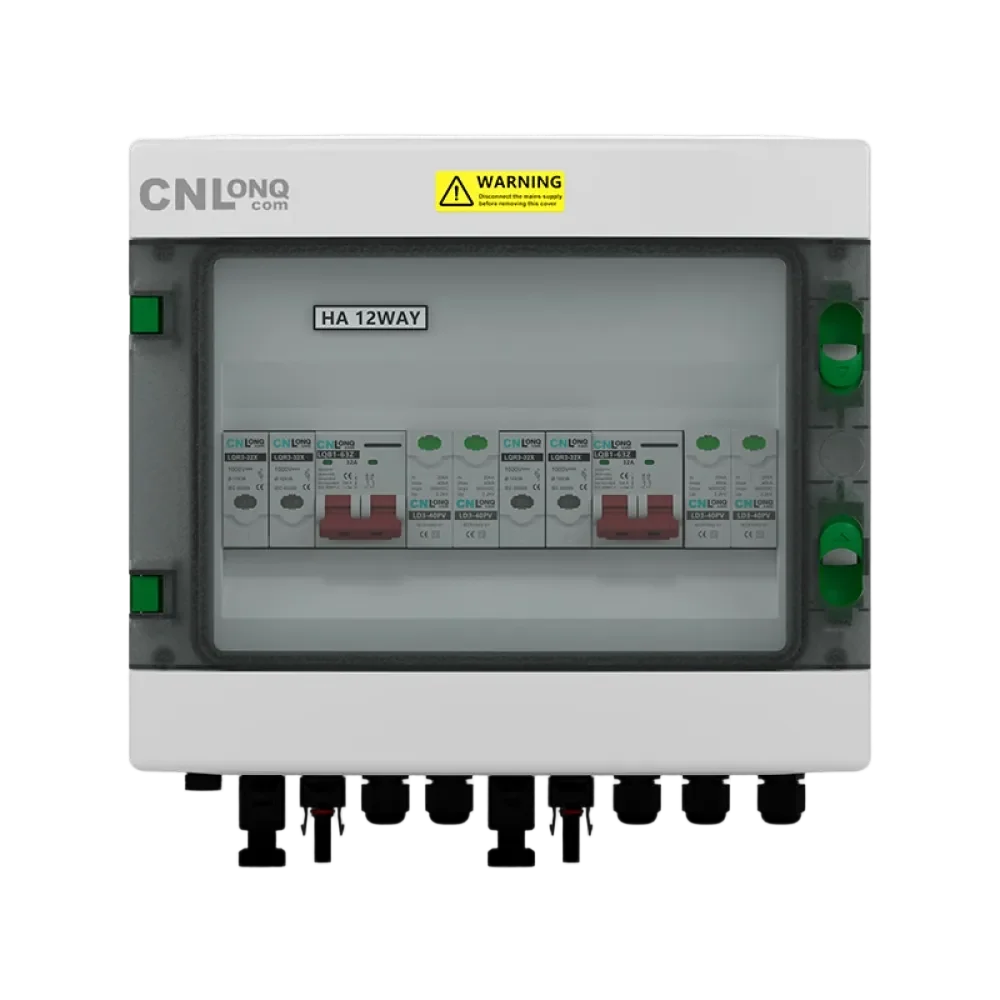

Protection, mounting and connection accessories for this kit family. Final component variants, quantities and mounting arrangements are confirmed with your configuration.
