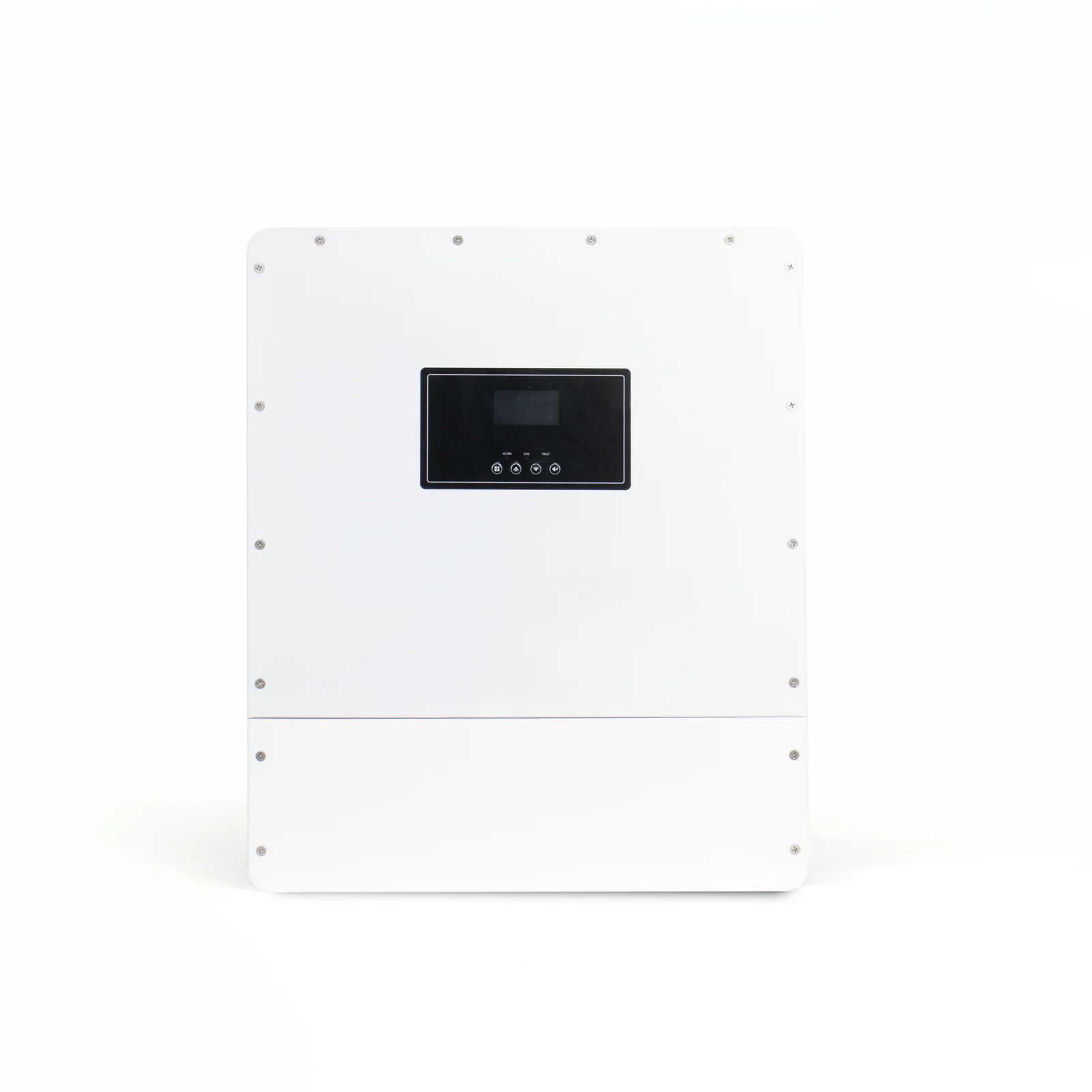

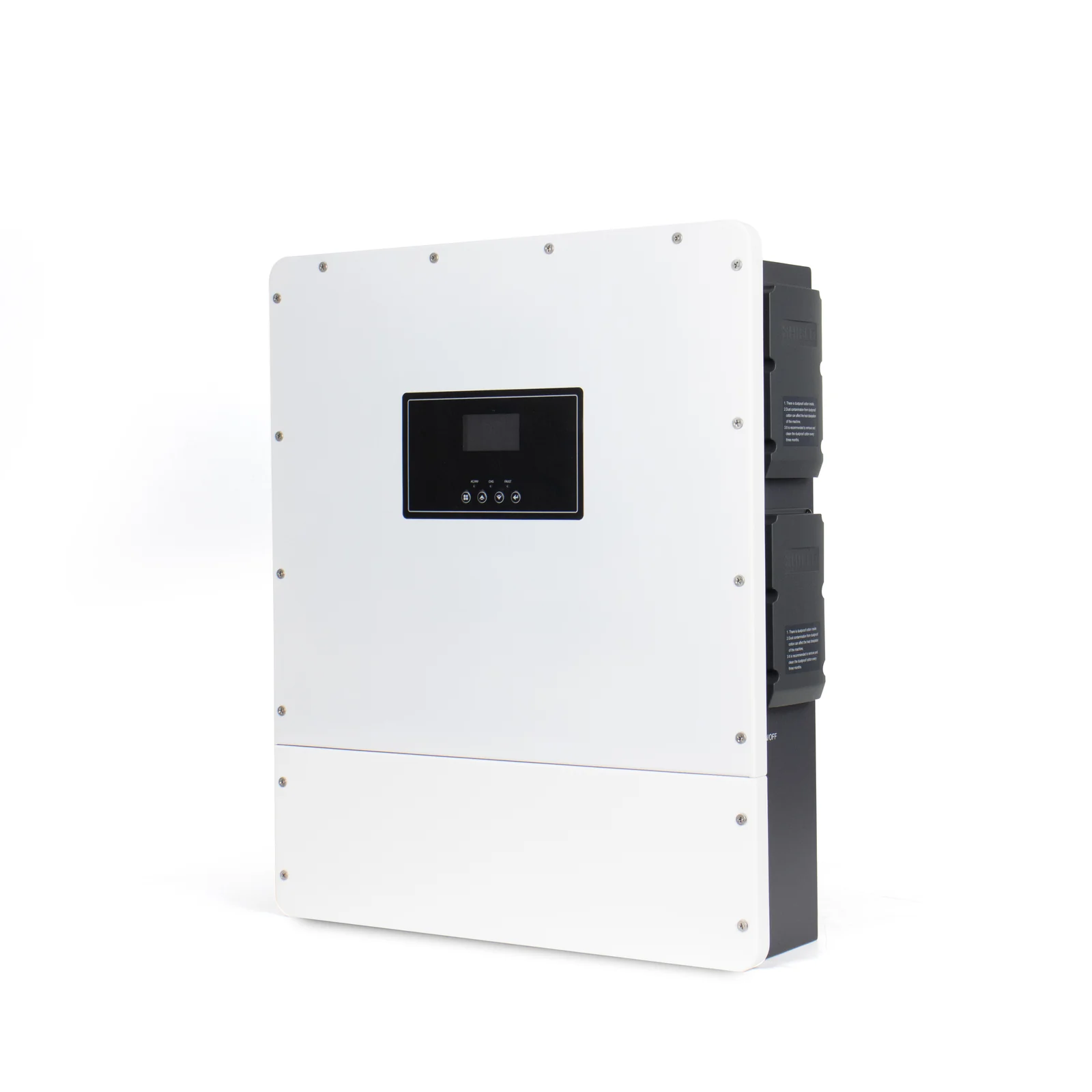

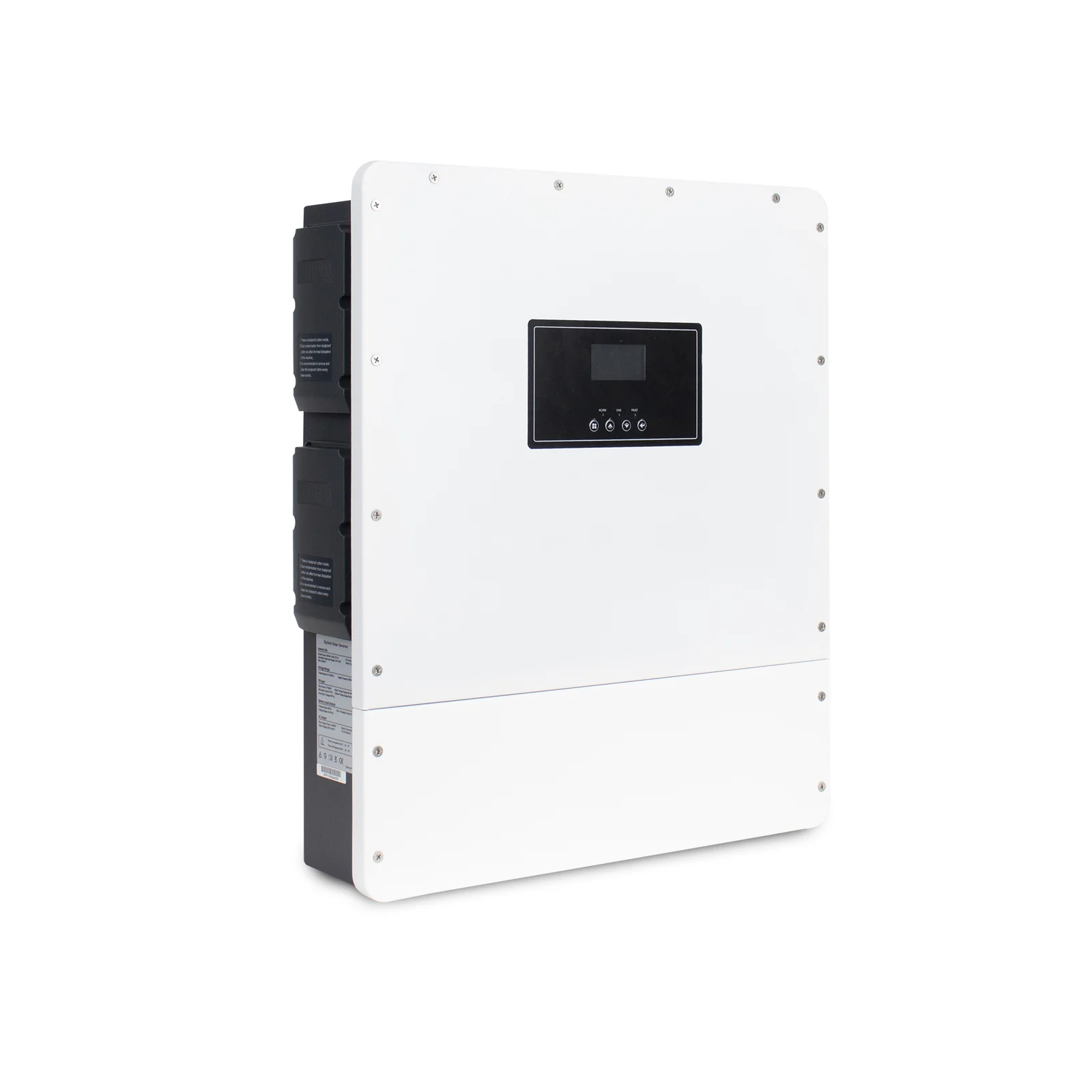

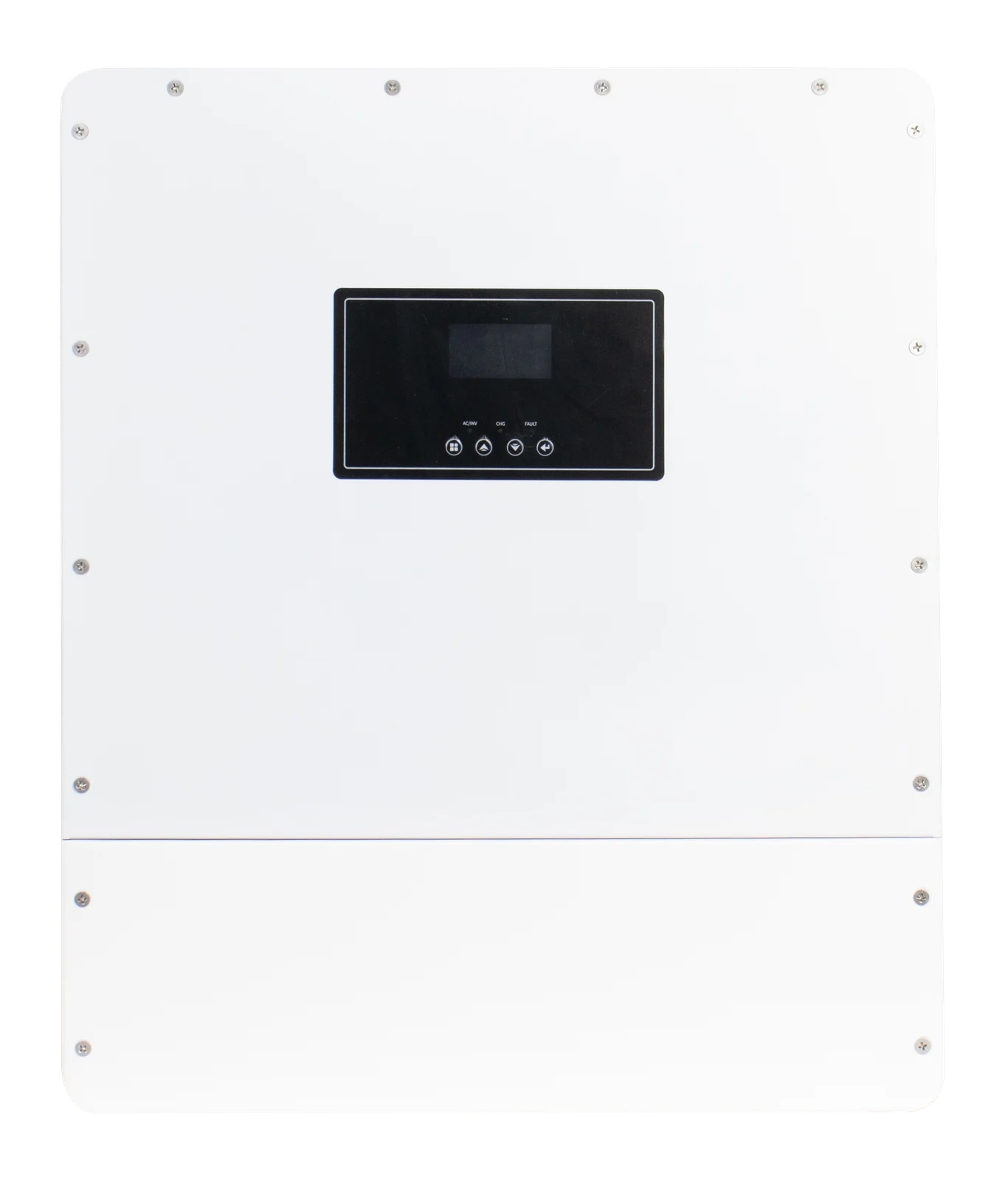

HE300-12000-FP-I5 is a single-phase hybrid inverter rated at 11 kW, for solar generation and battery-connected power systems.
KNOW YOUR SYSTEM
Its 2 MPPT tracker configuration and the PV input limits below support planning of the solar strings. Match the battery voltage range and charge/discharge limits to the selected storage system.
Check the AC output, backup operating limits and communication interfaces together when designing the installation. The tables retain model-specific ratings and distinguish optional functions from standard equipment.
Model-specific data from the supplied product records and specification sheets. Values marked for confirmation are not included in the headline ratings.
| Parameter | Specification |
|---|---|
| Model | HE300-12000-FP-I5 |
| Phase | Single-phase |
| Product Name | Single Phase Hybrid Inverter 11kW |
| Product Type | Photovoltaic hybrid grid inverter |
| Working Mode | hybrid |
| Parameter | Specification |
|---|---|
| Battery Charge/Discharge Current (A) | 150 |
| Battery Rated Voltage (V) | 48 |
| Battery Type | AGM/LIB |
| Mains Input Voltage (V) | 90–280 ±3 (APL); 170–280 ±3 (UPS) |
| Mains Rated Input Voltage (V) | 230 |
| Parameter | Specification |
|---|---|
| Max PV Open Circuit Voltage (V) | 500 |
| Maximum PV Input Power (kW) | 2 × 7.5 |
| No. of MPPT trackers | 2 |
| PV Input Open Circuit Voltage Range (V) | 90–500 |
| PV Short Circuit Current (A) | 27 |
| PV Charging Efficiency (%) | 98 |
| Parameter | Specification |
|---|---|
| AC Rated Output Power (kW) | 11 |
| Nominal AC Frequency (Hz) | 50/60 |
| Nominal AC Output Current (A) | 50 |
| Nominal AC Voltage (V) | 240VAC ± 5% (Single Phase) |
| Output Waveform | Sine wave |
| Mains Input Frequency (Hz) | 50/60 |
| Parameter | Specification |
|---|---|
| IP Ingress Protection Rating | 54 |
| Parameter | Specification |
|---|---|
| Cooling Method | Intelligent air cooling |
| Dimensions (W*H*D) (mm) | 600*505*245 |
| Humidity (%) | 20–95 |
| Operating Temperature (℃) | -10~50 |
| Parameter | Specification |
|---|---|
| Gross Weight (kg) | 26.5 |
| Net Weight (kg) | 22.9 |
| Packaging Size (mm) | 705*604*255 |
These clips show product appearance. They do not verify wiring, firmware, compatibility or installation procedures.
The supplied clip rotates the enclosure and shows exterior surfaces and the front panel. Use the model manual for electrical specifications and installation.
This is a visual overview, not a transcript or installation instruction.
