ZKHT-L-5.0
ZKHT-L-5.0 is a 5,015 kWh container battery energy storage system with liquid cooling for large-scale energy projects.
KNOW YOUR SYSTEM
Product overview
The battery system uses a 1P416S rack architecture and twelve battery racks, with a nominal DC voltage of 1,331.2 V. It provides a container-format storage building block for integration into the project power conversion and control architecture.
Review the DC operating limits, auxiliary supply, communication protocols, thermal management and fire-protection specification below. Standards named in the design sheet are listed separately from the available test-report library.
- IP Rating: IP55
Technical specifications
Model-specific data from the supplied product records and specification sheets. Values marked for confirmation are not included in the headline ratings.
| Parameter | Specification |
|---|---|
| Model | ZKHT-L-5.0 |
| Product Type | Container Battery |
| Configuration (Rack) | 1P416S (8 units) |
| Number of Racks | 12 |
| Auxiliary Power Supply | AC400V / 50Hz / 3P5W |
| Thermal Management | Liquid cooling + Air conditioning |
| Data Source | Pele parameter image, 2026-10-01 |
| Parameter | Specification |
|---|---|
| Voltage Classification | High Voltage |
| Cell Type | LFP-314Ah |
| Nominal Voltage (V) | 1331.2 |
| Operating Voltage Range (V) | 1123.2~1518.4 |
| Charge/Discharge Ratio/P | 0.5 |
| Rated Capacity (kWh) | 5015 |
| Short Circuit Current/kA | 55 |
| Parameter | Specification |
|---|---|
| IP Rating | IP55 |
| Fire Protection | FM200 fire extinguishing system |
| Parameter | Specification |
|---|---|
| Communication Interface | WLAN / RS485 / CAN |
| Communication Protocol | Modbus TCP / Modbus RTU / CAN 2.0 |
| Parameter | Specification |
|---|---|
| Operating Ambient Temperature (℃) | -20~60 |
| Dimension (mm) | 6058*2462*2896 |
| Weight | 45 tons |
| Parameter | Specification |
|---|---|
| Packaging Configuration | 1P52S |
| Parameter | Specification |
|---|---|
| Design Standard | GB/T 36276-2018; UL1973; UL9540; UL9540A; UN38.3; IEC62619; NFPA69; NFPA70; NFPA855; NFPA68Listed in the product source. This entry is not a verified model-specific certificate. |
Source documents
- ZKHT-L-5.0.md · product and packing record

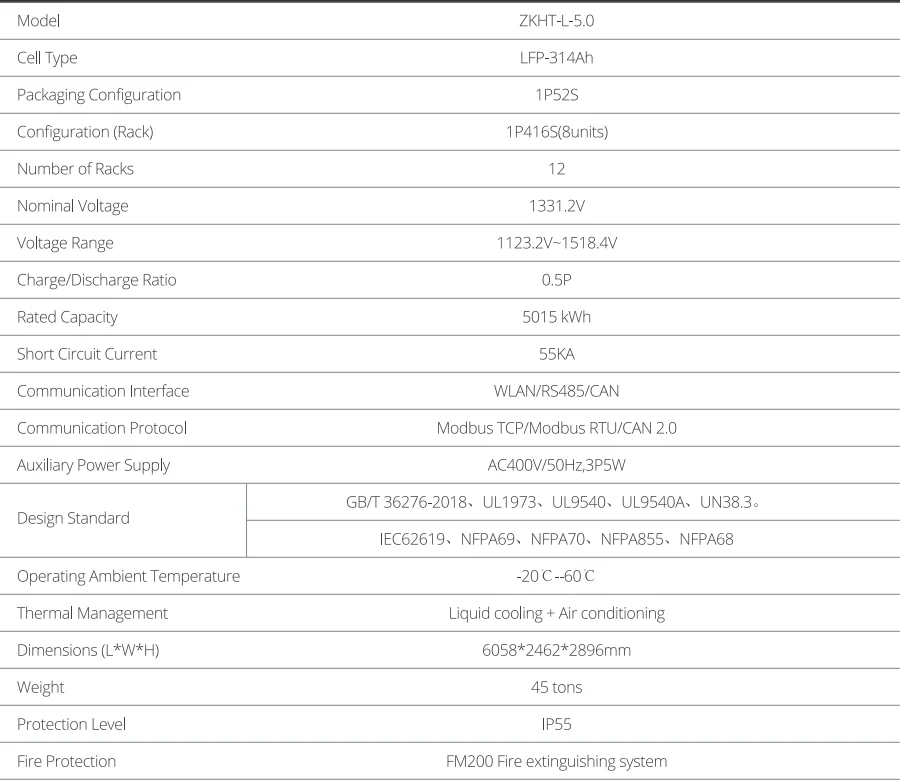

Original technical reference
Supplied reference sheet in its original language. Confirm the current specification and configuration with our technical team.
