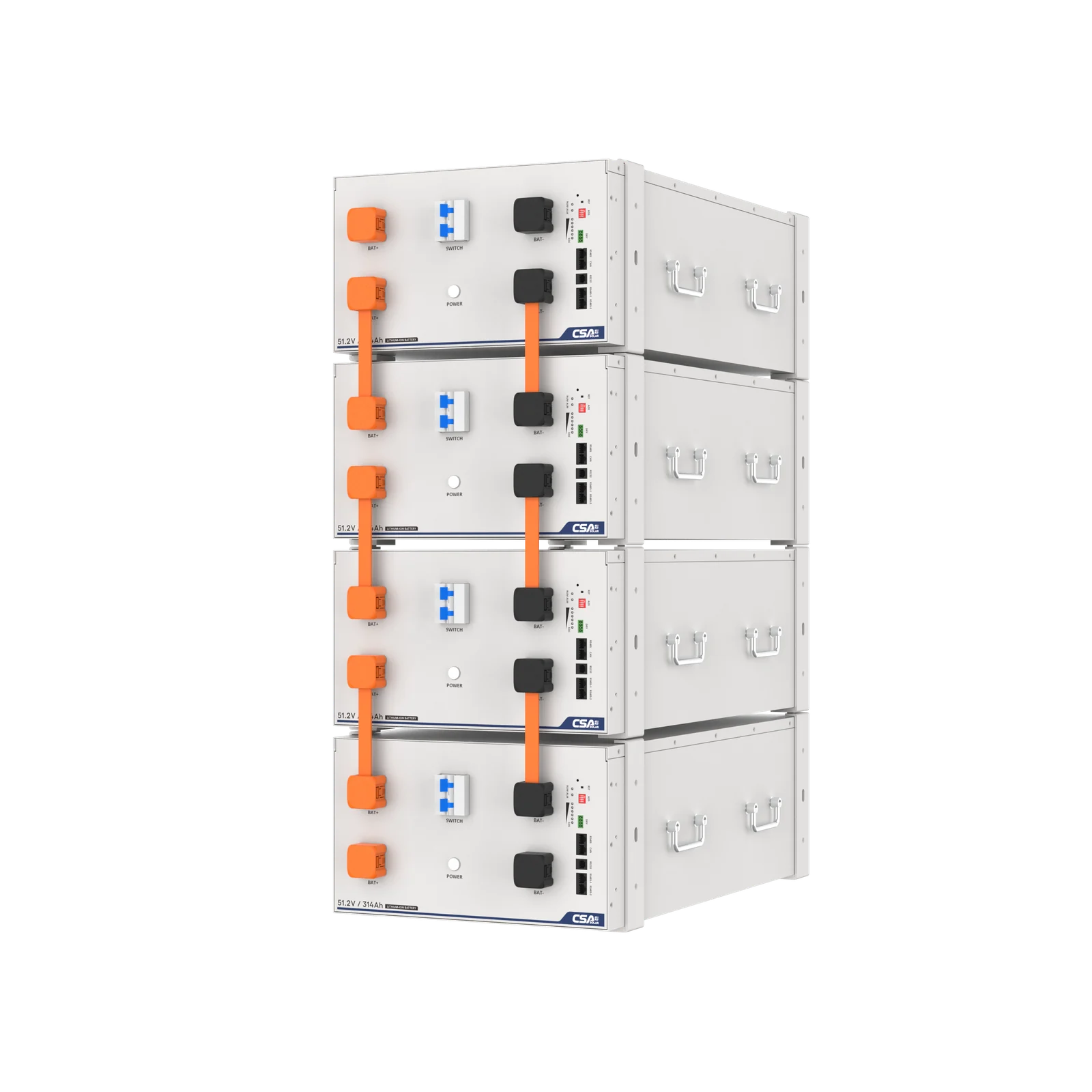

RT5.3
RT5.3 is a 16.08 kWh LFP battery with a nominal voltage of 51.2 V, for integration into a compatible storage system.
Energy16.08 kWh
Voltage51.2 V
ProtectionIP21
KNOW YOUR SYSTEM
Product overview
The RT5.3 design combines battery storage with the communication interfaces and installation format listed below. Review continuous charge and discharge ratings alongside energy capacity when matching the battery to an inverter.
The electrical, environmental and packing tables keep the available model data together. Cycle-life figures retain the test conditions provided in the source; missing or conflicting values remain marked for confirmation.
- Cell Technology: LFP(LiFePO4)
- Installation: Floor stand
- Scalability: Consult factory for parallel configuration
- Cooling Method: Natural cooling
Technical specifications
Model-specific data from the supplied product records and specification sheets. Values marked for confirmation are not included in the headline ratings.
Product & applicationBattery & energyPerformance & protectionControls & communicationMechanical & environmentPacking & logisticsSource-listed standards & warranty
| Parameter | Specification |
|---|---|
| Application | Energy storage / Backup power / Off-grid system |
| Compatible Inverters | Compatible with major PCS brandsConfirm the exact inverter model, protocol and firmware with technical support. |
| Model | RT5.3 |
| Number of Modules | 1 |
| System Components | DL16512 Battery Pack, Battery Management System (BMS), Base assembly |
| Parameter | Specification |
|---|---|
| Battery Module Spec | 16.08 kWh, 51.2 V, 314 Ah |
| Cell Technology | LFP(LiFePO4) |
| Max Charge Current (A) | 157 (0.5C) |
| Max Discharge Current (A) | 314 (1C) |
| Nominal Capacity (Ah) | 314 |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage Range (V) | 42.6 ~ 58.4 |
| Usable Energy (kWh) | 16.08 |
| Voltage Level (V) | 51.2 |
| Voltage Classification | Low Voltage |
| Parameter | Specification |
|---|---|
| Cycle Life (cycles) | 6,000 cycles (80% SOH) |
| Depth of Discharge (%) | 90 |
| IP Rating | 21 |
| Scalability | Consult factory for parallel configuration |
| Parameter | Specification |
|---|---|
| Communication | CAN / RS485 / RS232 |
| Display | Power indicator LED |
| Parameter | Specification |
|---|---|
| Charge Temperature (℃) | 0~50 |
| Cooling Method | Natural cooling |
| Dimension (mm) | 758*420*245 |
| Discharge Temperature (℃) | -20~50 |
| Humidity (%) | ≤95% RH (no condensation) |
| Installation | Floor stand |
| Parameter | Specification |
|---|---|
| Net Weight (kg) | 121.7 |
| Gross Weight (kg) | 132.5 |
| Packaging Size (mm) | 800*520*470 |
| Qty per Pallet | 5 |
| Qty per 40HQ | 210 |
| Parameter | Specification |
|---|---|
| Compliance | UN38.3, IEC62619, IEC61000Listed in the product source. This entry is not a verified model-specific certificate. |
| Warranty (years) | 5Source-listed term; confirm coverage and options with the quotation. |
