NS-12-314

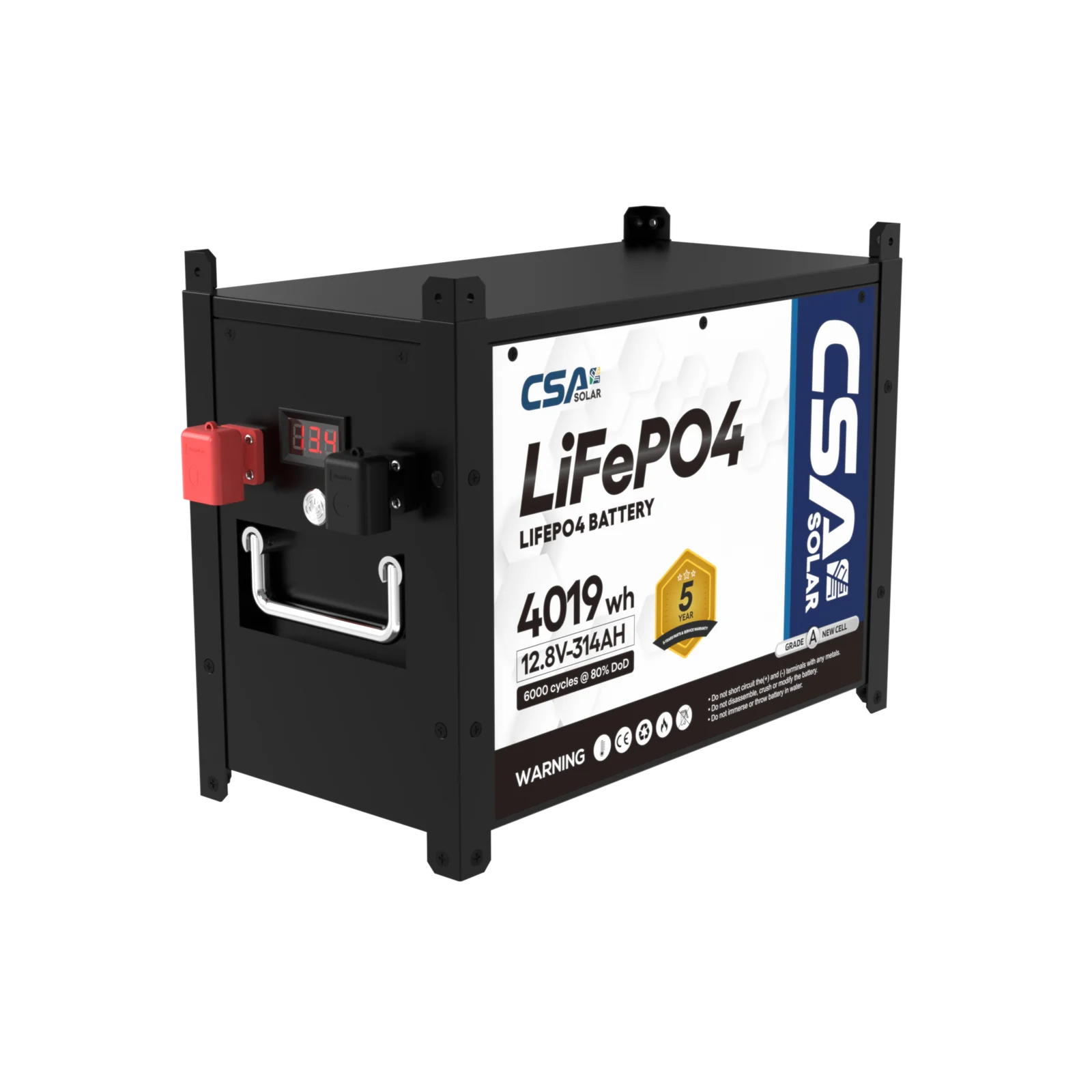

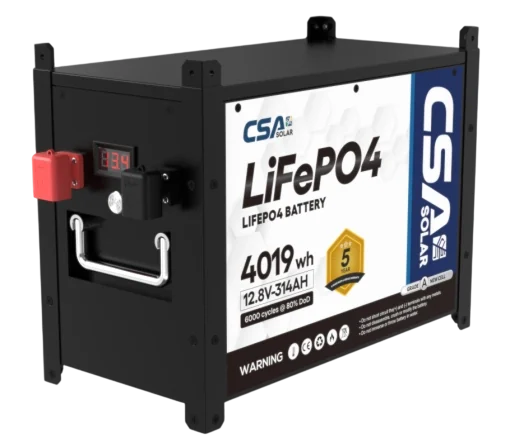

NS-12-314 is a 4.01 kWh LFP battery with a nominal voltage of 12.8 V, for integration into a compatible storage system.
Energy4.01 kWh
Voltage12.8 V
KNOW YOUR SYSTEM
Product overview
The Nova range uses a compact 12.8 V battery format. Capacity, current limits and enclosure dimensions help installers select the appropriate model for the intended DC storage application.
Use the operating-temperature limits and installation requirements below when specifying the battery. Confirm the supported system configuration and charging equipment before installation.
- Cell Technology: LFP(LiFePO4)
Technical specifications
Model-specific data from the supplied product records and specification sheets. Values marked for confirmation are not included in the headline ratings.
Product & applicationBattery & energyPerformance & protectionMechanical & environmentSource-listed standards & warranty
| Parameter | Specification |
|---|---|
| Application | On Grid / Backup / Off grid |
| Model | NS-12-314 |
| Product Type | Residential Battery |
| Parameter | Specification |
|---|---|
| Cell Technology | LFP(LiFePO4) |
| Nominal Capacity (Ah) | 314 |
| Nominal Voltage (V) | 12.8 |
| Usable Energy (kWh) | 4.01 |
| Voltage Level (V) | 12.8 |
| Voltage Classification | Low Voltage |
| Parameter | Specification |
|---|---|
| Cycle Life (cycles) | >6000 @ 80% DoD |
| Parameter | Specification |
|---|---|
| Dimension (mm) | 382×194×295 |
| Weight (kg) | 35 |
| Parameter | Specification |
|---|---|
| Warranty (years) | 5Source-listed term; confirm coverage and options with the quotation. |
